130 Amps 480-600 Volt Three phase Line Reactor 3PR-0130C3H

Be the first to review this product

Availability: Available for order. Production Time: 3 weeks

US$ 1,672.00

Quick Overview

Catalog No.: 3PR-0130C3H
Line Reactor Current: 130 Amps • 75 hp • Voltage: 480-600 Volt • Three Phase
Conductor: Copper. • Frequency 60 Hz.
US$ 1,672.00

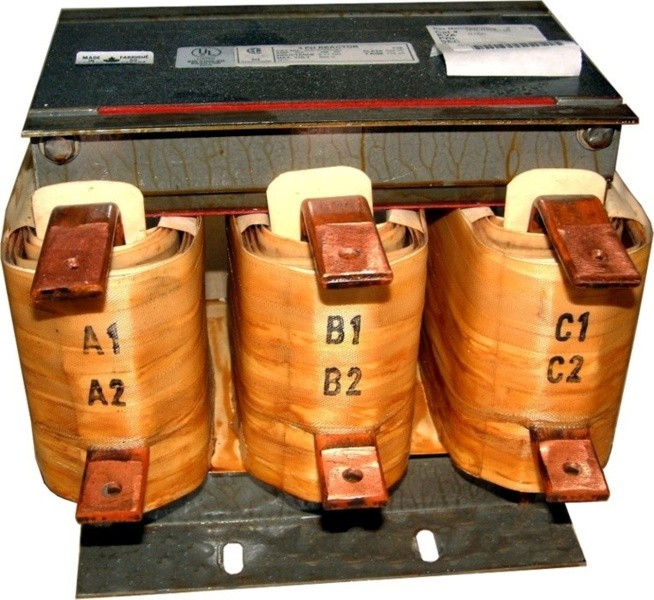

Three phase Line Reactor 3PR-0130C3H introduces specific amount of inductive reactance (impedance) into a circuit. This inserted impedance reduces line harmonics, moderate line transients, holds down spikes of current, limit peak current, absorb power line disturbances which could damage inverters, variable speed controllers or other voltage sensitive equipment.

 Line Reactor general dimensions

Preliminary General Drawing. (Dimension, inch).

*All information and images presented here is based on preliminary data or design and may be changed without prior notice.
Request Drawing Proof to confirm dimensions from Optional Feature tab, if it is critical.

Line Reactor 3PR-0130C3H Winding Schematics:


III Three phase connection

Full Specification

Catalog No. 3PR-0130C3H
Product Type Line Reactor
Phase Three
Maximum Current 130 Amps
Voltage range 480-600 Volt
Reactor Power Rate 75 hp
Frequency, Hz 60
Inductance, mH 0.21
Impedance 3%
Current over load capability 150% for 1 min
Saturation Level 250% of rated current (50% rated inductance minimum at 350% rated current).
Vector Group III
Winding Conductor Copper
Temperature Rise, °C 115
Insulation Class 180 (H)
Insulation Level, (B.I.L), kVA 4
Sound Level, dB 70
Standards, Certifications, Compliances: CSA Standard C22.2. No.47 Air Cooled Transformers (Dry Type)., CSA certified. File No. LR34493
UL Listed. File No.E108255., ISO9001 Quality Certification.
Enclosure Type None. Open construction
Dimensions A=12.00"; B=7.50"; C=08.50"; D=03.50"; E=04.50".
Weight, Lbs 56.0
Country of Manufacture Canada
